EM-301

EM-301
    Enlargement
    Product Name : EM-301
    Inquiry
    Back
    Product Introduction

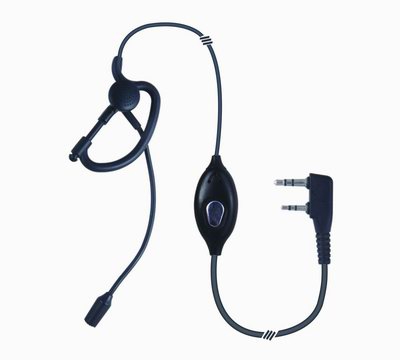

    STICK EARPIECE TYPE EARPHONE MIC.

    FITS MOST OF HANDHELD TRANSCEIVERS LIKE MOTOROLA; KENWOOD; ICOM ETC.
    GENERAL SPECIFICATIONS:

    MICROPHONE：

    • SIZE： 6φmm
    • SENSITIVITY：-54 ± 2dB
    • DIRECTIVITY：OMNI-DIRECTIONAL
    • FREQUENCY RESPONSE：100Hz - 160KHz
    • IMPEDANCE：2.2KΩ
    • WORKING VOLTAGE：1V-10V

    SPEAKER:

    • SIZE: 15φmm
    • IMPEDANCE: 32Ω ± 15﹪
    • FREQUENCY RESPONSE: 400Hz - 20KHz
    • SENSITIVITY: 102 ± 2dB
    • POWER: 20 mW
    • Max. POWER: 30 mW
