LP-230A / LP-230B

LP-230A  (N-FEMALE TO N-FEMALE)
LP-230B  (N-MALE TO N-FEMALE)

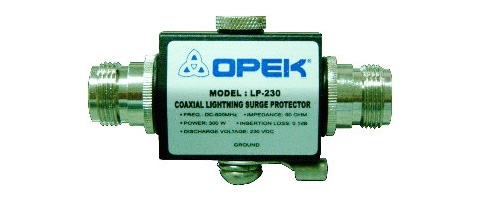

COAXIAL LIGHTNING SURGE PROTECTOR

--------------------------------------------------------------------------

• Frequency: DC - 1500 MHz
• Impedance: 50 Ω
• Insertion loss: less than 0.1dB
• Max. Power load: 100 W (PEP)
• Discharge Voltage: DC230V
• Dimension:
  72 x 40.5 x 20 mm(LP-230A)
  76.5 x 40.5 x 20 mm(LP-230B)

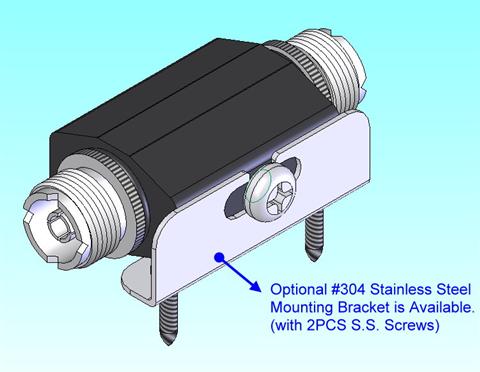

• Optional Stainless Steel Mounting Bracket with 2PCS S.S Screws is Available now.

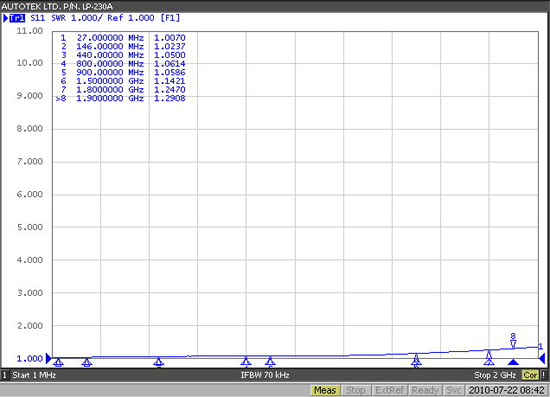

V.S.W.R. PERFORMING
