LP-350A / LP-350B

LP-350A  (SO-239 TO SO-239)
LP-350B  (PL-259 TO SO-239)

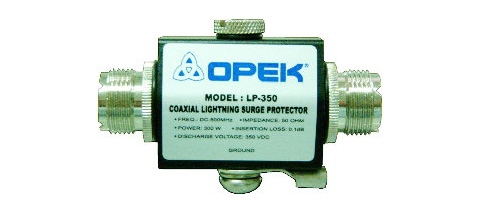

COAXIAL LIGHTNING SURGE PROTECTOR

--------------------------------------------------------------------------------------------------

• Frequency: DC - 500 MHz
• Impedance: 50 Ω
• Insertion loss: less than 0.1dB
• Max. Power load:  300 W (PEP)
• Discharge Voltage: DC350V
• Connection: UHF FEMALE to UHF FEMALE
• Dimension: 66.5 x 40 x 20 mm

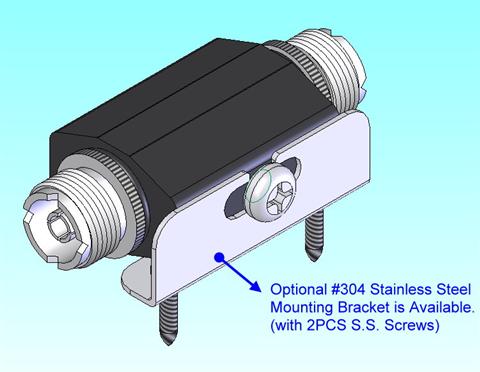

• Optional Stainless Steel Mounting Bracket with 2PCS S.S Screws is Available now.
