    Product Introduction

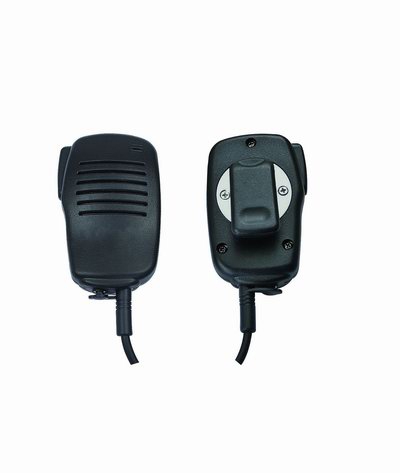

    SHOULDER SPEAKER/MIC. SERIES

    COMFORTABLE HOLDING AND LIGHT-DUTY COMPACT REMOTE SPEAKER MICROPHONE

    FEATURES:
     MICROPHONE UNITS PROVIDE CLEAR AUDIO COMMUNICATIONS
     PROFESSIONAL RUGGED DESIGN
     AVAILABLE FOR MOTOROLA; KENWOOD; ICOM; YAESU; VERTEX; MAXON; AND MORE
     HANDINESS
     FRIENDLY PTT OPERATING AREA
     FITS MOST OF HANDHELD TRANSCEIVERS LIKE MOTOROLA; KENWOOD; ICOM ETC.

    GENERAL SPECIFICATIONS:

    MICROPHONE：
    SIZE： 9.6φmm
    SENSITIVITY：-50 ± 2dB
    DIRECTIVITY：OMNI-DIRECTIONAL
    IMPEDANCE：2.2KΩ
    WORKING VOLTAGE：1V-10V

    SPEAKER:
    SIZE: 36φmm
    IMPEDANCE: 8Ω ± 15﹪
    FREQUENCY RESPONSE: 420Hz - 20KHz
    SENSITIVITY: 102dB ± 2dB
    SOUND PRESSURE LEVEL: 120 ± 2dB
    Max. POWER: 30 mW
