SWR-6L

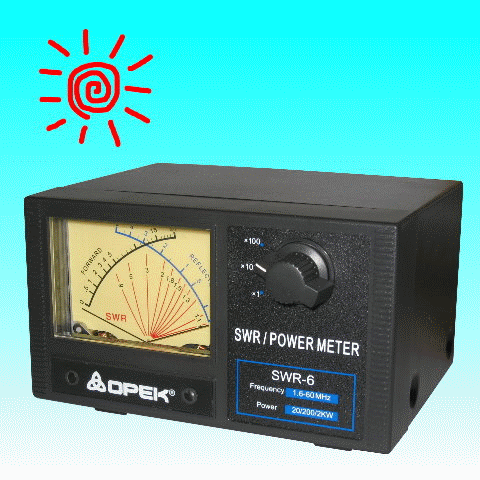

SWR-6L HF/VHF SWR POWER METER w/LED Illumination

• Frequency: 1.6 - 60 MHz (HF/VHF)
• Impedance: 50 Ω
• Power Range: 0-2 KW
• Power Scale: 20/200/2K W
• Max. Power: 2K W
• Accuracy LOW(x1) Range: (AVG.)±10%; ±15% or better
• Accuracy HIGH(x10; x100) Range: (AVG.)±5%; ±10% or better
• Min. Power (Fwd.) Measure: 1W
• Insertion Loss: Less than 0.1dB
• Tolerance: 10% full scale
C
• onnection: UHF Female/M Type(SO-239); N type connector is optional
• Test Function: Fwd/Rev Power; SWR
• LED Illumination
• Dimensions: 140(W) x 84(H) x 122(D) mm
• Weight: 600g
