TS-10 (A/B)

TS-10 (A/B)

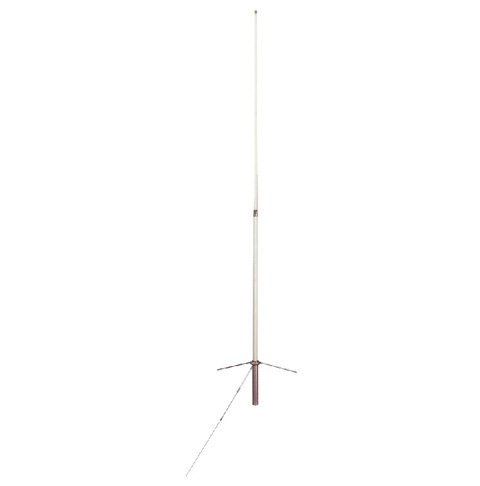

TRI-BAND GP BASE STATION ANTENNA

 ---------------------------------------------------------------------

• FREQUENCY: 52 / 146 / 435 MHz (TS-10A)

                            52 / 146 / 445 MHz (TS-10B)

• GAIN: 3.5 / 6.2 / 8.6 dBi
• IMPEDANCE: 50 OHM
• V.S.W.R. LESS THAN 1.5:1
• POWER CAPACITY: 150 WATTS
• CONNECTION: UHF FEMALE (SO-239)
• LENGTH: 2.4M / 2-SEC. FIBERGLASS TUBE
• THE ANTENNA COMPLETE WITH STAINLESS U-BOLTS & MOUNTING HARDWARE
