WG-2424-WLAN antennas
EnlargementProduct Introduction

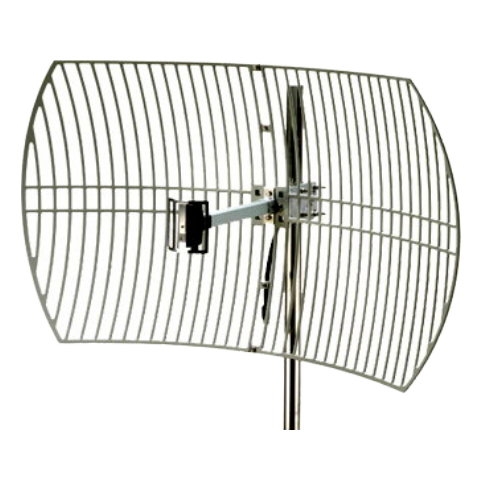

WG-2424 2.4GHz 24dBi Gain Wireless Lan Grid Antenna
- Frequency: 2400-2483.5 MHz
- Bandwidth: 83.5 MHz
- Gain: 24 dBi
- Horizontal Beamwidth: 10°
- Vertical Beamwidth: 14°
- F/B Ratio > 30dB
- V.S.W.R. ≤ 1.5
- Impedance: 50 Ω
- Polarization: Vertical or Horizontal
- Power (Max .): 100 W
- Connector: N Female
- Dimension: 0.6x0.9 M
- Weight: 3 kg
- Wind Velocity: 60 M/s
