WG-5830-WLAN antennas
EnlargementProduct Introduction

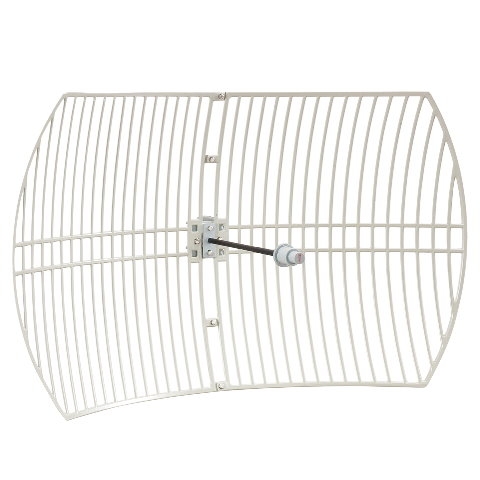

WG-5830 5.8GHz 30dBi Gain Wireless Lan Grid Antenna
- Frequency: 5725-5850 MHz
- Bandwidth: 125 MHz Gain: 30 dBi
- Horizontal Beamwidth: 4°
- Vertical Beamwidth: 6°
- F/B Ratio > 30 dB V.S.W.R. ≤ 1.5
- Impedance: 50 Ω
- Polarization: Vertical or Horizontal
- Power (Max): 100 W
- Connector: N female
- Dimension: 0.6×0.9 M Weight: 3 kg
- Wind Velocity: 60 M/s
- 4.9-5.9GHz is available now!!
