WP-0825-WLAN antenna
EnlargementProduct Introduction

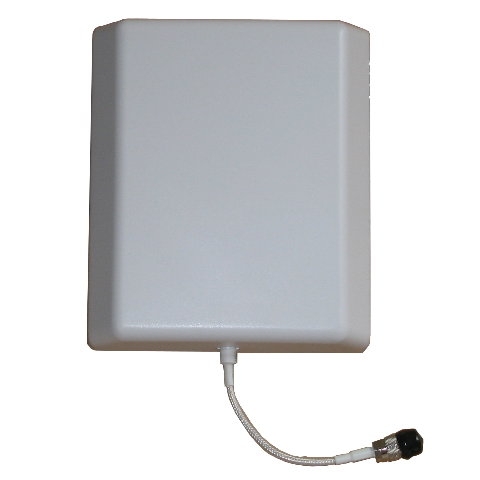

WP-0825 800/2500 MHz Broadband Panel Antenna
- Frequency: 800-960/1710-2500 MHz
- Gain: 7dBi
- V.S.W.R. ≤ 1.5
- Horizontal Beamwidth: 70°
- Vertical Beamwidth: 50 °
- Impedance: 50 ohm
- Polarization: Vertical
- Power (Max.): 100 W
- Connector: N Female
- Dimension: 210x180x44 mm
- Weight: 600 g
- Radome Material: UV-Inhibited ABS
- Installation: Wall Mounting
