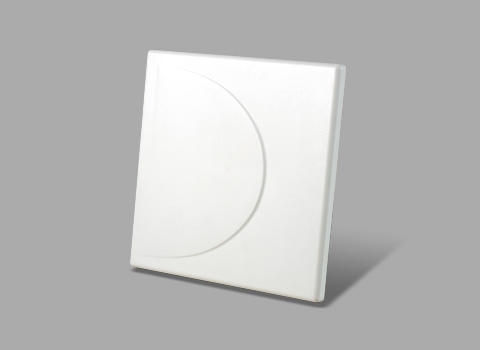

WP-2313-WLAN antennas

WP-2313-WLAN antennas
    Enlargement
    Product Name : WP-2313-WLAN antennas
    Inquiry
    Back
    Product Introduction
    • Frequency: 2.4 / 3.5 / 5.8 GHz
    • Gain:
      13 / 19 dBi for 2.4GHz
      13 dBi for 3.5GHz
      19 / 24 dBi for 5.8GHz
    • ANTENNA TYPE : PCB PATCH ARRAY
    • POLARIZATION: LINEAR
    • V.S.W.R. LESS THAN 1.5
    • POWER CAPACITY: 50 WATTS
    • IMPEDANCE: 50 OHM
    • BEAM WIDTH :
      13dBi 19dBi 24dBi
    OVERTICAL 35° 17° 8°
    HORIZONTAL 42° 17° 8°
    • N FEMALE CONNECTOR
    • OPERATING TEMPERATURE: -40°C ~ +80°C
    • UV-INHIBITED PLASTIC COVER
    • STAINLESS STEEL MOUNTING HARDWARE(U-BOLTS; TOOTH BRACKETS; NUTS; SPRING WASHERS)
    MODEL NO. FREQ.( MHz ) GAIN( dBi ) Dimension (mm)
    WF-2313 2300~2400 13 380 x 380 x 45
    WF-2319 2300~2400 19 190 x 190 x 45
    WF-2413 2400~2500 13 380 x 380 x 45
    WF-2419 2400~2500 19 190 x 190 x 45
    WF-2613 2500~2700 13 380 x 380 x 45
    WF-2619 2500~2700 19 190 x 190 x 45
    WF-3513 3400~3700 13 190 x 190 x 45
    WF-5219 5125~5350 19 380 x 380 x 45
    WF-5224 5125~5350 24 190 x 190 x 45
    WF-5819 5725~5850 19 380 x 380 x 45
    WF-5824 5725~5850 24 190 x 190 x 45
