WP-2413D-WLAN antennas

WP-2413D-WLAN antennas
    Enlargement
    Product Name : WP-2413D-WLAN antennas
    Inquiry
    Back
    Product Introduction

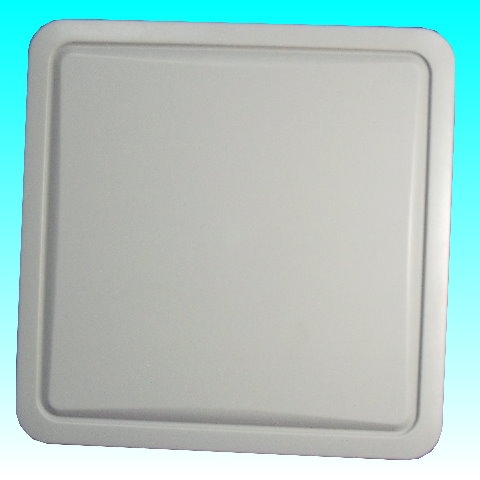

    WP-2413D 2.4-2.5GHz Dual Polarization Panel Antenna w/Enclosure
    • Frequency: 2.4-2.5 GHz
    • Gain: 13dBi
    • V.S.W.R. < 1.5
    • Horizontal Beamwidth: 42°
    • Vertical Beamwidth: 35 °
    • Impedance: 50 ohm
    • Polarization: Dual
    • Power (Max.): 50 W
    • Connector: N Female
    • Dimension: 240x240x70 mm
    • Cabinet Material: UV-Inhibited ABS
    Panel;Yagi;Omni;Sector & Ceiling Antennas for Wireless Networking
    Frequency
    WLAN 4G: 770-830/868±30/902-928MHz
    WiMax : 2.3-2.4/2.5-2.7 GHz(802.16e)
    3.4-3.7 GHz(802.16d)
    5.1-5.9 GHz(802.11a)
    WiFi : 2.4-2.5 GHz
    WiMax/WiFi: 4.9-5.125 GHz
    IS Band: 3.9-4.2 GHz
    Gain: 3/4/5/6/8/10/12 dBi Optional
    Application: Mesh/Point-to-Point/Multipoint-to-Point
    /High-Speed Mobile/Coverage
