WP-2420E-WLAN antenna
Product Introduction

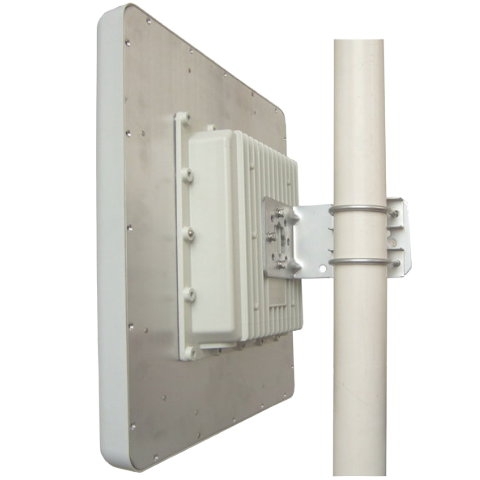

WP-2420E 2.4 GHz 20dBi Gain Wireless LAN Panel Antenna w/Enclosure
- Frequency: 2400-2483.5 MHz
- Bandwidth: 83.5 MHz
- Gain: 20dBi
- Horizontal Beamwidth: 16º
- Vertical Beamwidth: 16º
- F/B > 28 dB
- V.S.W.R. ≤ 1.5
- Impedance: 50 Ω
- Polarization: Horizontal or Vertical
- Power (Max.): 100 W
- Connector: SMA Female
- Antenna Dimension: 371x371x80 mm
- Enclosure Inner Dimension: 186x184x40 mm
- Radome Material: UV-Inhibited ABS
- Enclosure Material: Aluminum Die Cast
- Weight: 2.5kg
- Mounting Mast Diameter: 30 to 50 φmm
