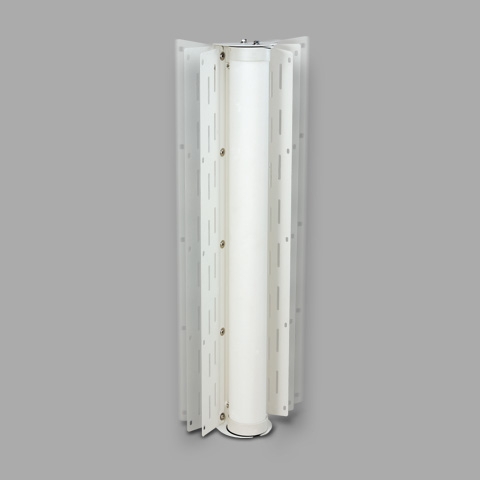

WS-2316-WLAN antennas
EnlargementProduct Introduction
- Frequency: 2.4 / 3.5 / 5.8 GHz
- Gain:
16 dBi for 2.4GHz
16 dBi for 3.5GHz
19 dBi for 5.8GHz - ANTENNA TYPE: COLLINEAR
- POLARIZATION: VERTICAL
- V.S.W.R. LESS THAN 1.5
- POWER CAPACITY: 50 WATTS
- IMPEDANCE: 50 OHM
- BEAM WIDTH :
|
|
14dBi
|
16dBi
|
19dBi
|
|
OVERTICAL
|
18°
|
13°
|
10°
|
|
HORIZONTAL
|
90°
|
90°
|
90°
|
- DOWN-TILT ANGLE: 90° ~ 60°
- N FEMALE CONNECTOR
- OPERATING TEMPERATURE: -40°C ~ +80°C
- UV-INHIBITED PLASTIC TUBE
- STAINLESS STEEL MOUNTING HARDWARE (U-BOLTS; TOOTH BRACKETS; NUTS; SPRING WASHERS)
- 3-WAY ANGLE-ADJUSTABLE REFLECTORS
|
MODEL NO.
|
FREQ.( MHz )
|
GAIN( dBi )
|
Dimension (mm)
|
|
WS-2313
|
2300~2400
|
16
|
125 x 80 x 385
|
|
WS-2319
|
2400~2500
|
16
|
125 x 80 x 385
|
|
WS-2413
|
2500~2700
|
16
|
125 x 80 x 385
|
|
WS-2419
|
3400~3600
|
16
|
125 x 80 x 650
|
|
WS-2613
|
5125~5350
|
16
|
125 x 80 x 875
|
|
WS-2619
|
5725~5850
|
16
|
125 x 80 x 875
|
