UH-420SM (No Tuning Needed)

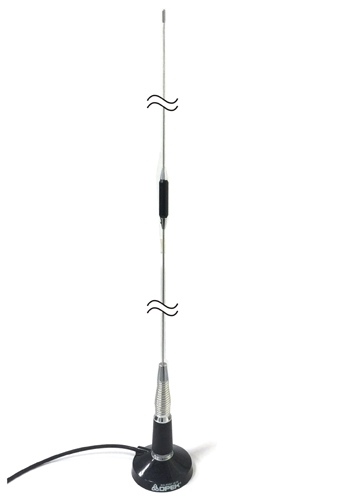

UH-420SM / UHF MOBILE WIDE BAND COMMUNICATION ANTENNA

(No Tuning Needed)

- Gold Plated Center Pin

- Chromed Brass bushing & Ferrule

- Stainless Steel Shock spring

- 17-7PH Stainless Steel Whip

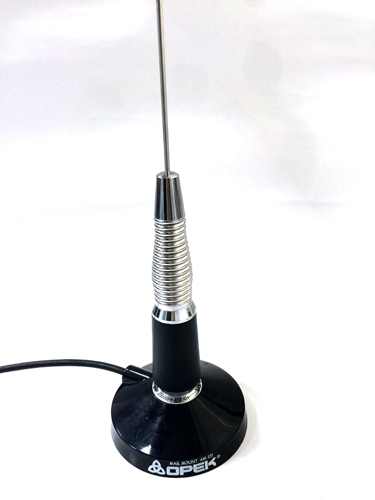

- 3.5 inches Mag Mount "OPEK AM-101" With 14FT RG-58U COAX. W/PL-259

Electrical Specifications :

• FREQUENCY                  : 427 ~ 464 MHz
• Bandwidth (≤1.5)          : 37 MHz
• GAIN                            : 5.5dBi
• Wave                            : 5/8λ over 1/2λ
• V.S.W.R. LESS THAN 1.5
• IMPEDANCE                   : 50 OHMS
• POWER CAPACITY          : 120W

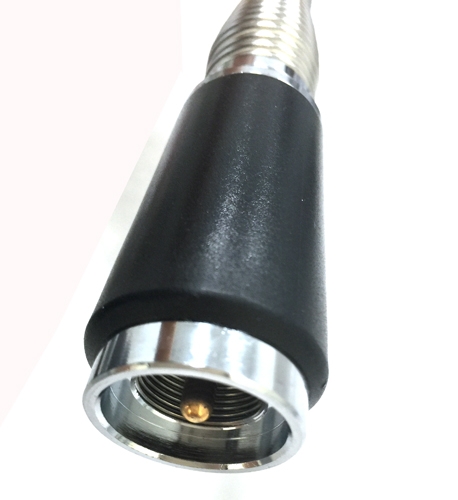

• ANTENNA CONNECTION  : UHF Male (PL-259)
• LENGTH                         : 874mm (Approx.)
